Float & Board Type Level Gauge
We are one of the leading manufacturers, suppliers and dealers in India of all types of Level Gauge including Float & Board Type Level Gauge. Our Level Gauge are known for their high quality, accurate measurement, reliability and seamless performance. For any further information about rotamter, please contact us at the details given below.
Description

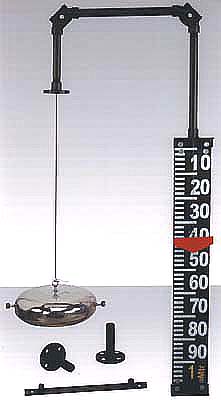

Leading manufacturers and suppliers in India of Level Gauge. Float and Board Level Gauge (FLG-19) are normally used for large tanks/vessels. The specific gravity of the fluid should be more than 0.6 . Float is available in different material SS 304/SS316/PP/Teflon etc. The float is guided inside the tank with the help of anchor plate and guide wires. 6" wide scale is supplied along with the indicating pointer. The pointer and float are connected through a steel wire that travels through two pulleys for smooth working. These Pulleys are put inside weather proof housings and are on the top of the tank.
Float inside the tank rises and falls with the level of fluid; this makes the pointer move on the scale indicating level inside the tank
- Used for Level Indication in large tanks/vessels for liquid with S.G 0.6 or more
- Float guided by anchor plate at bottom and spring assembly at top of tank
- 6" wide Alluminium/MS Powder coated scale in black colour with white stickers
- Indication of Gauge Board, 10 mm wide graduation, minor marking at every 100 mm in white figures of 40 mm height, major markings at 1000 mm in white stickers of 70 mm height
- Float available in SS 304 / SS 316 / PP / Telfon in 12" and 6 " dia
- Nylon pulleys with weather proof Pulley housings
- Guide wire spring assembly with SS Guide wires
- Gauge Board Support Assembly : MS Painted/Powder coated
- MS Powder coated Indicator (Red) Assembly
- Also available Vaccum Seal type for corrosive fluids
Float & Board Type Level Gauge
Specifications:
| Indication |
On Gauge Board, Graduation: 10 mm wide, Minor marking at every 100 mm in white figures of 40 mm height, major markings at 1000 mm in white stickers of 70 mm height. |
| Float | SS 304/316/PP/Teflon, 12 OR 6 dia. Guide Wire spring assembly with SS guide wires 90 Elbow |
| Bottom Anchor | SS/MS |
| Gauge Board with MS mounting brackets, nuts, bolts, & washers | |
| Guide wire Cable tensioning Assembly |
Material Of Construction:
| Gauge Board | Al. Powder coated in black |
| Gauge Board Support Assembly | MS Painted |
| Gauge Board Connection Assembly | MS painted |
| Indicator Assembly | MS Powder coated |
| Guide Wire | SS. |
